TECHNICAL WORKING Reference number: M-DDS/09.

Military dry-suit diving

Application of dry-suit:

For miners navy forces involved in performing a special underwater operations.

Description of dry-suit:

  • The suit can be configurated up to end-user’s needs.
  • The suit is available in extended chart including 31 standard sizes and in option Made to Measure.
  • The suit is made from trilaminate poliester as outer layer in black color / butyl rubber in the mid / poliester as inner layer which is flexible and provides good maneuverability.

Area of fitted profile.

  • The construction of suit is ergonomic and maneuvarable:
    • crotch seams are not crossed to each other,
  • The entrance metal gastight zipper Dynat / YKK is placed in front of torso in diagonal position and protected by flap with plastic zipper YKK – additional telescoping torso provides stretchability of suit during usage.
  • The textile fabric is waterpoof trilaminate of poliester / rubber butyl / poliester in black color.

Area of fitted details.

  • Glued HD latex neck seal and HD latex wrists seals are flexible.
  • The neoprene dry-hood is integrated with suit.
  • The exhaust valve Sitech is placed on left sleeve at upper arm area – in-let valve Sitech is located in front of torso.
  • Suit has two cargo pockets placed on the side of legs installed in molle system of straps made in classic version.
  • The flaps of cargo pockets in its bottom parts have inside a special elastic ropes enabling better catching by hands dressed in gloves.
  • The suit has “relief” metal gastight Dynat / YKK zipper in front of torso covered by protective flap with plastic zipper YKK.

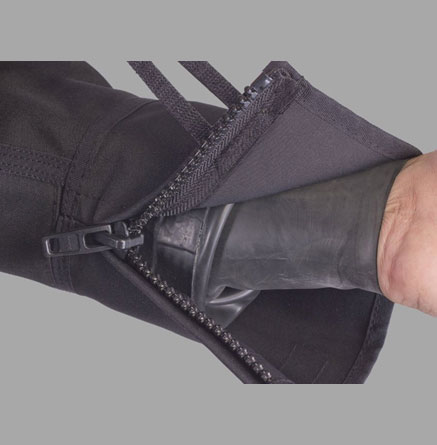

  • External cuffs at wrists area have short plastic YKK zippers and additionally have also a solution of rubber strap-Velcro fasteners for keeping slider locks of YKK zippers in fixed position what eliminates the risk of hooking up while moving hands/legs.

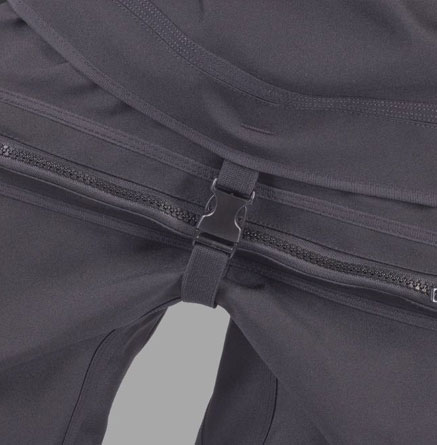

  • The suit has elastic suspenders inside for getting better stabilization during the usage.

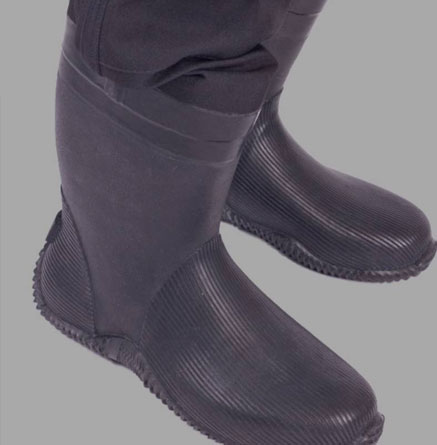

  • There are integrated dry-diving boots.

Area of fitted configurations.

  • Instead of HD latex seals alternatively the neorprene seals can be used in wrists and neck area.
  • Instead of metal gastight Dynat/YKK zippers alternatively can be used metal gastight zippers BDM/YKK.
  • The pockets on hands and legs area can be:
    • integrated in fixed way by glueing,
    • integrated in fixed way by stitching,
    • integrated in mobile way by molle system of straps where molle system can be made in classic version or in lasered version,
  • Integrated boots can be replaced by integrated socks made from neoprene material.
