Composite Grating
Composite gratingUSCG approval

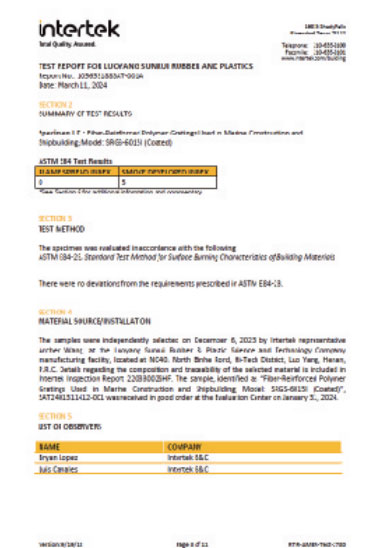

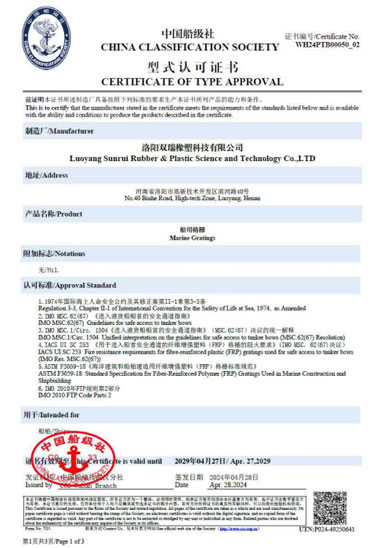

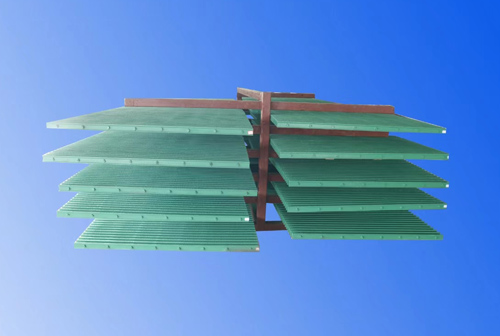

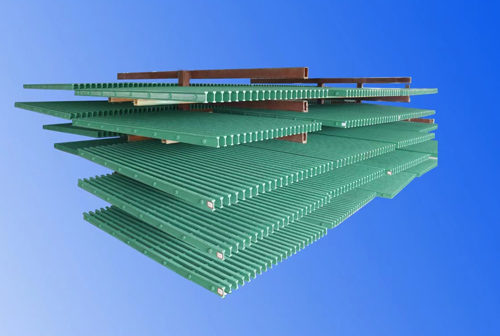

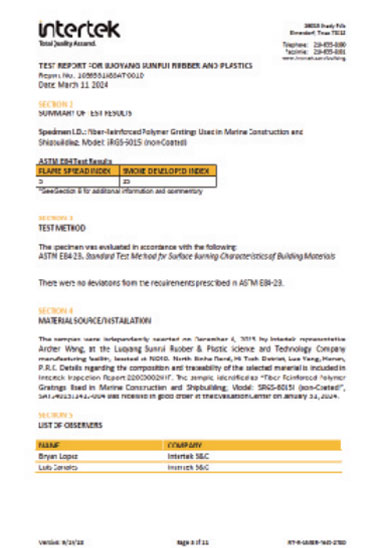

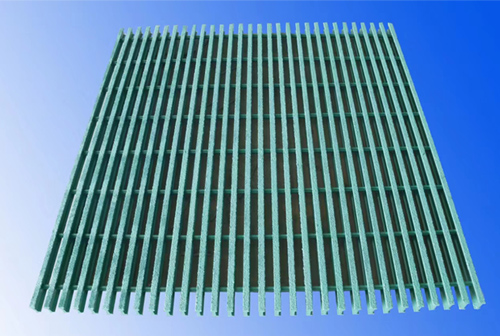

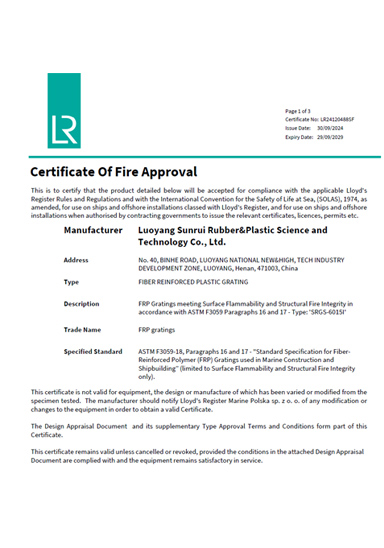

This product is assembled and painted/sanded of pultruded composite grating strips and interpolated bars. It uses high quality raw materials, advanced manufacturing processes and perfect traceability quality control. It can be used for emergency life-saving escape routes such as evacuation routes/ramp ladders, open decks, operating areas for fire-fighting systems, emergency rescue operations and production platforms, temporary safety shelter stations in the marine and offshore facilities. With a density of 17.5Kg/m, it has a weight reduction of over 60% compared to steel grating. The product has been certified by CCS and met USCG L2 and ASTM F3059 "Standard Specification for Fiber-Reinforced Polymer (FRP) Gratings Used in Marine Construction and Shipbuilding" L2 level requirements.
Features
Still has strength after 60min in fire
High fatigue, anti-corrosion, slip and wear resistance.
Lightweight and high strength
Good anti-ageing and resistant to marine environment
Technical Parameters
| Item | Indicators | With coating | Without coating |
|---|---|---|---|
| FSI (flame spread index) | < 20 | 20 | 10 |
| SDI (smoke density index) | < 450 | 30 | 5 |
| Item | Indicators | Rusults | Standards |
|---|---|---|---|
| Tension strength in Mpa | ≥ 400 | 480 | GB/T1447- |
| Density in g/cm3 | 1.9 | 1.9 | CB/T 608 |
| Oxygen Index in % | ≥ 33 | 41 | GB/T2406 |
| 300kg safe load in mm | Deflection < 2mm | 1.5mm | CB/T |
| Organic content in % | 30 ~ 40 | 30 | CB/T 608 |
| Curing degree | ≥ 85 | 95 | CB/T 608 |
| Barcol Hardness | ≥ 40 | 45 | CB/T 608 |
| Appearance requirements | The adhesive is evenly applied, without overflow, burrs, interlayers, and cracks | The adhesive is evenly applied, without overflow, burrs, interlayers, and cracks | CB/T 608 |
* Technical performance may change due to product improvement or design changes without prior notice. Please contact our company for the latest product information.

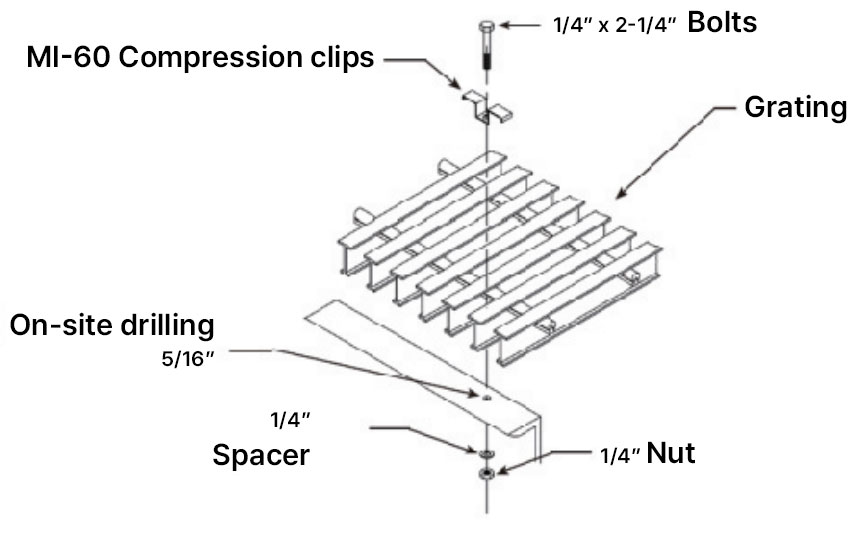

Installation & Maintenance
