VIKING LFF & LSA & Liferaft & MES
Safety Packages
Access our VIKING Cargo and Hygrapha catalogs.
Service
- LFF(Loose Fire Fighting Appliance)
Firemans' Outfit
Seawater
Safety Equipment
Chemical Protective
Equipment
Equipment
SCBA
Deck Equipment
Etc.
- LSA(Life Saving Applaince)
Lifebuoy
Immersion Suit
Lifejacket
Pyrotechnics
EEBD
Etc.
- Liferaft
Liferaft
- MES

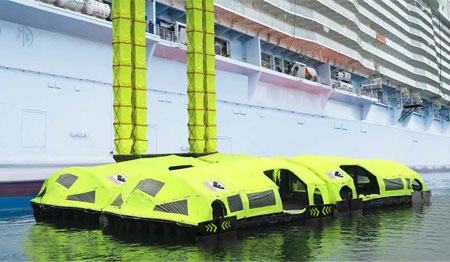

VIKING LifeCraft™
| LENGTH | 16000 +/- 500 mm |
|---|---|
| DEPTH | 2565 mm |
| HEIGHT | 2700+150 mm |
| WEIGHT (incl. 4 LifeCraftTM units) | 37800 kg |
| STOWAGE HEIGHT | approx. 8-16 m |
| EVACUATION CAPACITY | 812 persons within 30 min. with 4 EscapeWayTM chutes |
| LIFECRAFT UNIT CAPACITY | Approved for 203 persons with a SOLAS A-Pack |
| APPROVALS | SOLAS III, Regulation 38 and MSC.1/Circ.1455, LifeCraftTM unit approved according to A520(13) |

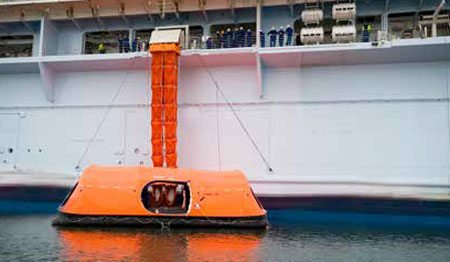

VIKING VEDC
| STOWAGE HEIGHT | Min. 8.9 - max. 16.8 m |
|---|---|
| EVACUATION CAPACITY | 908 persons within 30 min. with 2 EscapeWayTM chutes |
| LIFERAFT | Approved with 153 persons with a SOLAS A-Pack |
| LENGTH | 3355 mm |
| DEPTH | 2970 mm |
| HEIGHT | 2500 mm |
| WEIGHT | 4970 kg |
| APPROVALS | SOLAS 74, regulation III |
VIKING VEC PLUS™
| STOWAGE HEIGHT | Min. 5 m and max. 20 m above waterline in lightest seagoing conditions |
|---|---|
| EVACUATION CAPACITY | 565 persons within 30 min. (SOLAS regulation) with one chute 317 persons within 17 min. and 40 sec. (SOLAS-HSC regulations) |
| LIFERAFT | 100 DKS approved for 101 persons with SOLAS A-Pack |
| LENGTH | 3000 mm |
| DEPTH | 2755 mm |
| HEIGHT | 3320 mm |
| WEIGHT | 4300 kg |
| APPROVALS | SOLAS 74, regulation III |
